Telecaster Three Way Drop in Loom

Sometimes the simple things are also the best things. That’s the attitude that we’ve taken with Monty’s 3-way telecaster wiring harness; there really is nothing too complicated going on here, just premium components and first-rate craftsmanship, all employed to turn the simple into the simply sublime.

The only slight tweak that we do like to make is our 50's wiring mod. This changes the wiring of the tone cap to resemble that used in a 50's Les Paul. In turn, this affects the interaction between the volume and tone pots, keeping the guitar brighter as you roll down the volume.

This wiring harnesses is handmade by us using the highest quality components; 250K audio taper CTS pots, a CRL 3-way switch, our own super high-quality 0.022uf paper-in-oil tone cap, vintage-correct pushback wire and a Switchcraft jack. Basically, all the good stuff.

The parts are all American imperial sized so may not automatically fit on import instruments with metric sized parts without a little modification. If you are unsure, please contact us in advance and we will advise what needs to be done.

This harness is available in both right-handed and left-handed configurations.

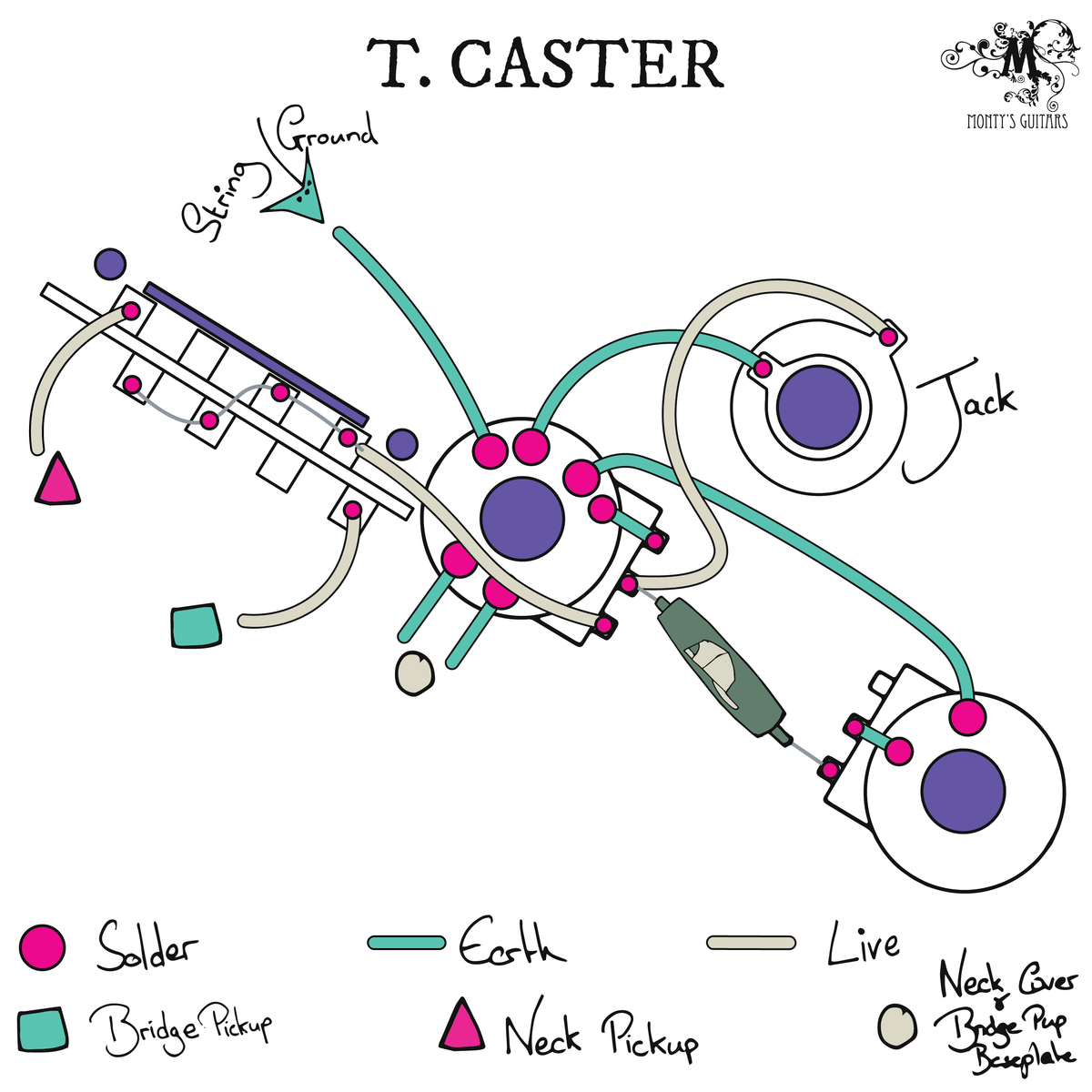

Our Tele wiring diagram can be downloaded here
